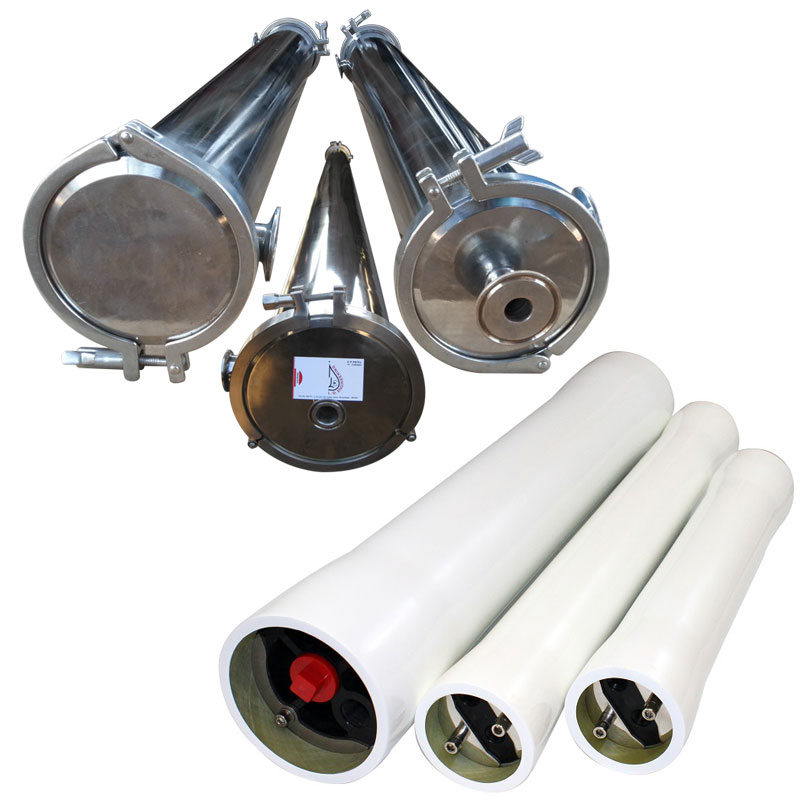

R O Store offers a range of high quality Fiber Reinforced Plastic (FRP) membrane pressure vessels with a wide choice of port types and configurations suitable for both low and high pressure applications.
The smooth inner surface of these vessels facilitates easy membrane installation while the high dimensional accuracy results in tight seals to help ensure leak free operation.

Technical Information

Diameter - 2.5", 4" and 8"
Length - 1 - 8 elements
Pressure - 10 - 82 bar (150psi - 1200psi)

Available Models  :
4” Membrane pressure vessel :

Pressure rating (PSI)	300,450,1000 ,1200
MOC	FRP
Length	1 to 6 element
Connection	Side port /End port

8” Membrane pressure vessel :

Pressure rating (PSI)	250,300,450,600,1000 ,1200
MOC	FRP
Length	1 to 8 element
Connection	Side port /End port

Make :
ALL reputed make available



Housing Features and Benefits

Competitively priced to fit your budget and engineered to outperform plastic housings, our housings deliver signficant savings over the life your membrane system.

Allows for superior flow and reduced pressure drop. All ports are tri-clamp connections with 180 grit polished.

Welds and edges are all polished to be smooth and tapered.

Options Available

Grade - 304 L S.S. and 316 L S. S.

Why Stainless Steel

• No seals involved in side port connections
• Unlike fiberglass, doesn't warp or weep
• Is not affected by UV rays or Sunlight
• S.S. is a preferred and universally accepted material for water systems and sanitary process applications
• Can withstand high temperatures, up to 200⁰ F
• Capable of supporting process piping
• During assembly, stainless housings are lighter and easier to handle
• Than PVC and FRP housings with equivalent pressure ratings

Specifications

Housing Model	Feed Port Style	Housing Lengths	Housing Material	Feed Port Connections	Feed Port Connections	Interior Finish	Exterior Finish
4 Inch	Side-Entry	1-3 Elements	304 SS - 316 SS	1"	Victaulic / Tri-Clamp	Mirror	Matt / Mirror
8 Inch	Side-Entry	1-3 Elements	304 SS - 316 SS	1 1/2"	Victaulic / Tri-Clamp	Mirror	Matt / Mirror

Product List

• Pressure vessels, Filter, Softener...etc.
• Industrial Machineries.
• Swimming pool filtering system.
• Pharmaceutical vessels, Reactor and Looping piping etc.
• Effluent trearment plant machineries
• All type of heavy fabrication
